Belt for coin counting and sorting machine TOP1 and TOP2

Product No.:
9930500023
approx. 14-20 days approx. 14-20 days (abroad may vary)
Weight:
0,006 kg per pc(s).
18,00 EUR

incl. 20% tax excl. Shipping costs

pc(s).:
Add to wish list
Price offer
Ask about product
Description

Belt for coin counting and sorting machine TOP1 and TOP2

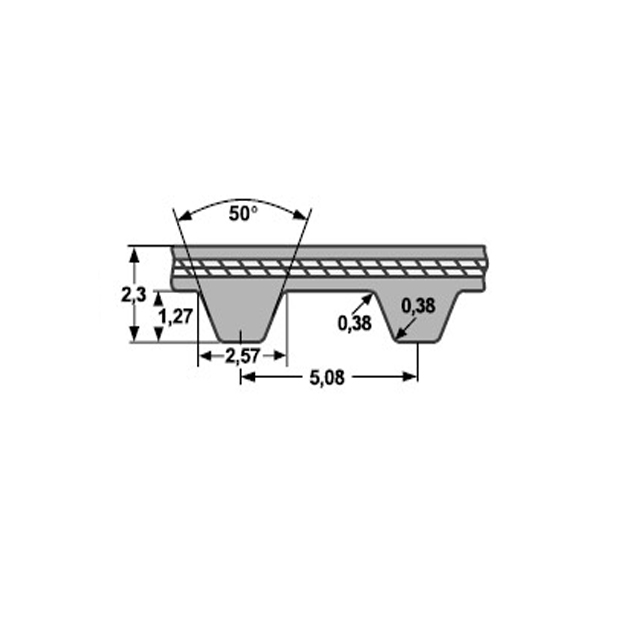

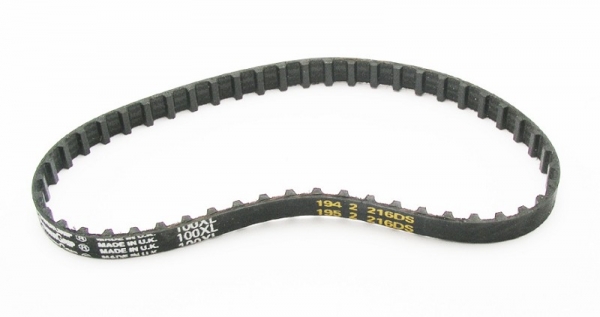

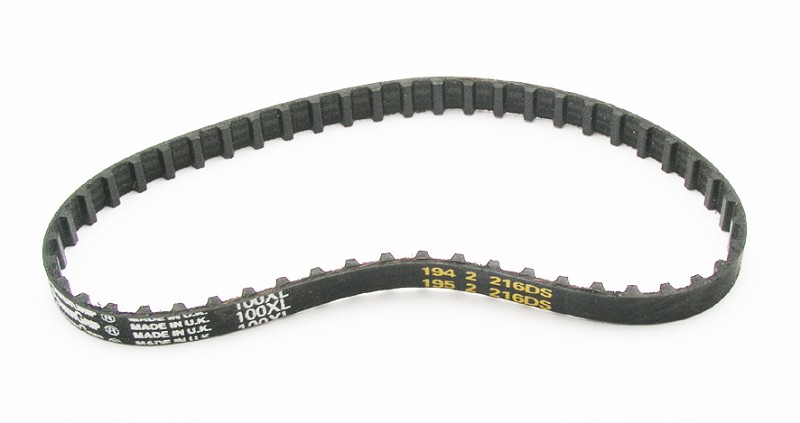

Timing belt 100XL for Coincounter model TOP1 and TOP2. Drawing number Picture 5

Technical specifications:
Profile: XL
Strap Length: 254mm
Strap length in inches: 10 inch
Tooth Spacing: 5.08mm
Number of teeth: 50
Width: 6.35mm
Width in inches: 0.25 inch
Total Height: 2.3mm
Tooth Height: 1.27mm
Material: neoprene
Tensile cord: fiberglass
Weight: 0.004kg
Click here ------> Spare Parts Exploded View

Downloads
Ersatzteiliste Münzzählmaschine  (390.72 KB)
