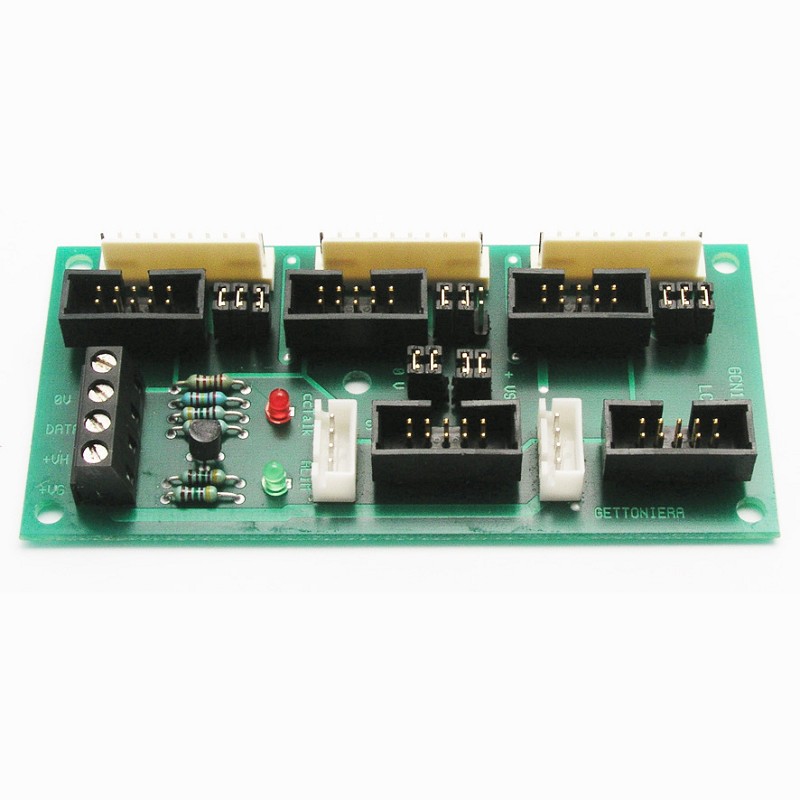

CC-Talk Hub for Coinvalidator RM5, Banknotereader and Hopper

The CC-Talk Hub Interface enables you to connect different devices with CC-Talk protocol to the RS232 interface of your computer. It is possible to connect one electronic coinvalidator RM5, one banknotereader NV7/8/9/10 and up to 4 Cube Hoppers MKII concurrently. To connect the CC-Talk Hub with the RS232 Interface of your computer, you need the cable with the part-no. 9930500505.

Compatible with following devices:
Electronic coinvalidators RM5 Part.No. 9930500511 Part.No. 9930500512
Coin payout unit Cube Hopper CC-Talk Part.No.: 9930500506
For the connection of the Cube Hopper you need the cable part.No.: 9930500507
Banknotereader NV7,NV8,NV9,NV10.
For the connection of the billreader you need the cable part.No.: 9930550054
In the delivery contents included:
Wiring diagram
Hint: Not included in the delivery contents is the interfacecable for the RS232 interface (part-no. 9930500505), please order it extra.
Technical specifications:
Dimensions: WxLxH 51mm x 104mm x 15mm
Weight: 0,038 kg
