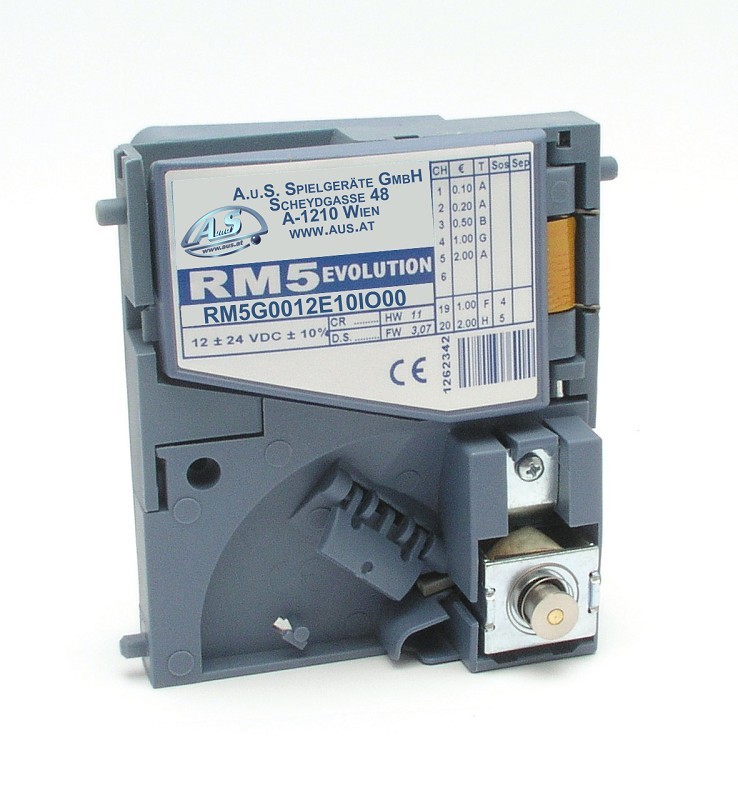

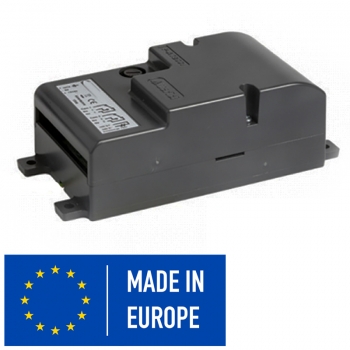

RM5G00 Coin Validator
The fixing points, designed according to international standards, ensure ease of application also on operating machines Designed to fully meet the different requirements of different sectors such as: vending, gaming, carwash, service stations, recreation grounds, self laundries, parking areas, gyms, and the whole self-service sector in general. The new electronic system developed for this machine couples an extraordinary selectivity, thanks to 3 pairs of inductive sensors and 3 pairs of optical sensors for measuring, with an extreme programming versatility. As a matter of fact, via the Cloning system, the configuration parameters can be transferred from a coin mechanism to another. The series of RM5 electronic coin validators has been designed to fully meet the different requirements of the sectors using this product. In particular:automatic distribution, gaming and amusement, gas stations, parking areas, photocopiers etc.
General characteristics
3 pairs of inductive sensors processing 6 different parameters concerning the coin material and size.
3 pairs of optical sensors to recognize the coin diameter. Mechanical antifi shing device.
Electronic antifi shing device. Electronic anti "intrusion" device.Wire cutting blade.Automatic sensor compensation system for temperature, voltage and light variations.
Interfaces Serial interface to talk with external systems (portable programmer, pc) to adjust, test and update the operating value/parameter tables.

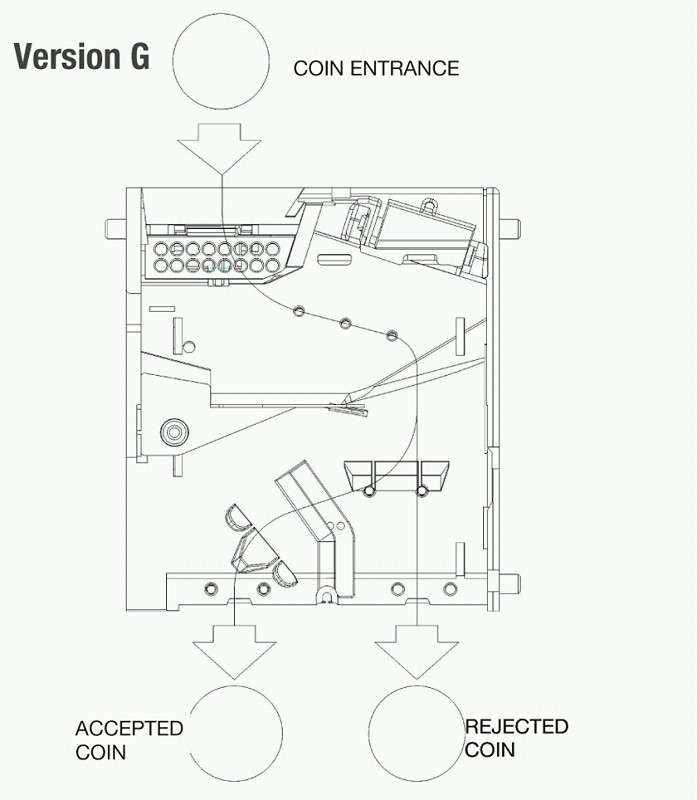

VERSIONS Click here for the model overview

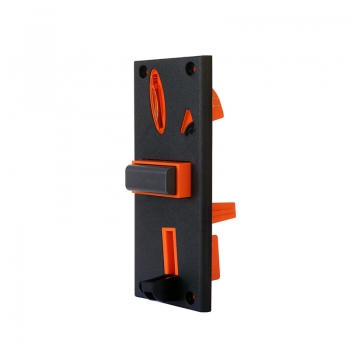

INSTALLATION Adapters, different front plates and interface permit to build it to the RM5 in most diverse devices.
Configurations
00 Parallel Validator
01 Parallel Validator with coin sorter
E0 Spain mode validator
AT Spain mode validator with differentiated time pulses
B0 Binary Validator
BC Confi da Binary Validator
0M Multimpulse Validator
10 Dual price totalize
14 Single price totalizer with internal time reset
FD Totalizer for fountains
20 Credit pulse emission totalizer
21 Credit pulse totalizer with sorter control
30 Progressive timer
3R Progressive timer with request timed credit emission
3C Progressive timer with counter output
40 Totalizer with on request credit pulses
60 Totalizer with on request timed credit emission
70 Single price multiple sale totalizer.
Details to the versions find you in the model overview or in the manual.
Options:

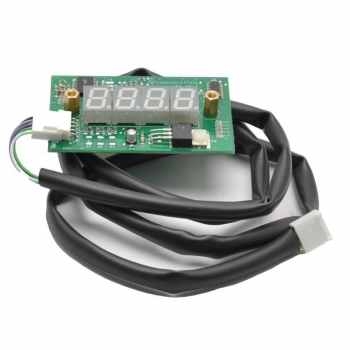

A vast range of coin sorters and adaptors.

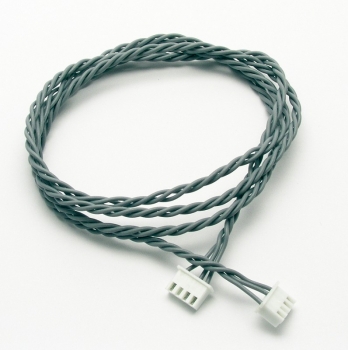

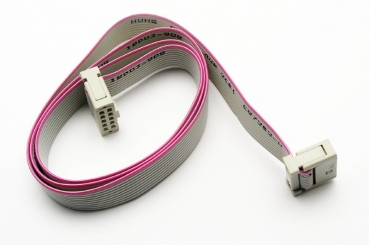

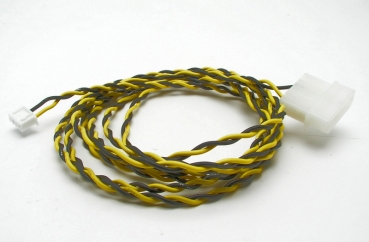

Art.no.9930500273: standard cable 40 cm to connect the coin mechanism to the host machine.
Available lengths: 15 - 20 - 40 - 60 - 80 - 100 - 150 - 250 cm.

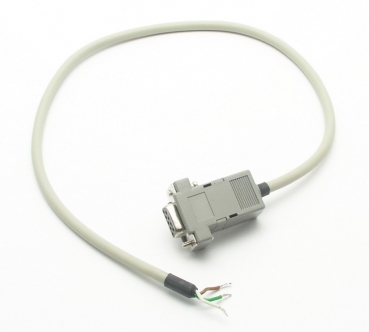

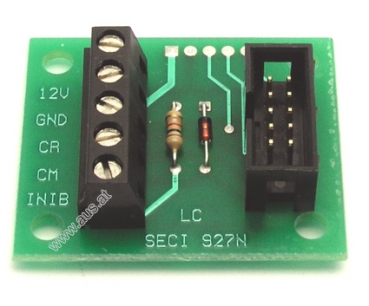

Art,no.9930500486: Interface to connect an RM5 Evolution to a pc in serial mode.

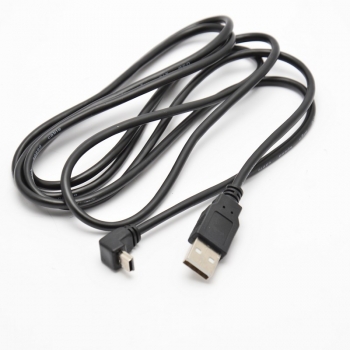

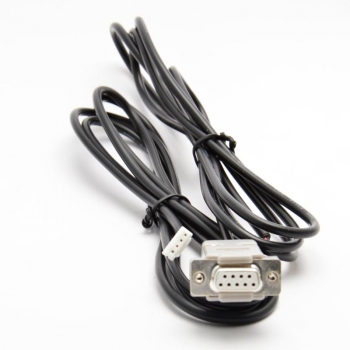

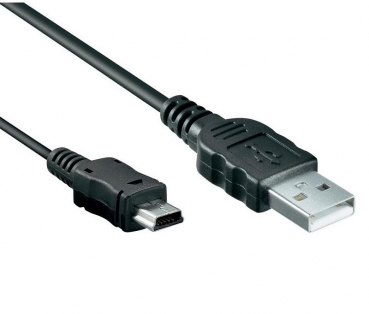

Art.no.9930500592 SERIAL USB: cable to turn a serial connection into a USB connection.
Outputs credit reporting: Parallel, Binary, Pulse.
Sorter control: up to 5 sorting channels with protection against short circuit and overcharge.
Output
Credit reporting: Parallel, Binary, Pulse. RS232, CC-talk only in dedicated version Sorter control: up to 5 sorting channels with protection against short circuit and overcharge.
Programming systems:
Thanks to the state-of-the art electronics used, the coin validator can be programmed in three different modes:
SELF-PROG FUNCTION (FUNCTION DISABLED FOR : RM5 X CC italian version, RM5 X AT, RM5 XE0)

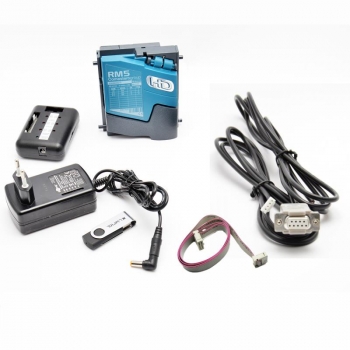

PORTABLE PROGRAMMER (2 models available, one for Evolution and one for CC talk)
PC KIT (2 Software versions available. One for Evolution, EO,AT, one for CC talk version.
Security:
Mechanical antifi shing device.Electronic antifi shing device. Electronic anti “intrusion” device.Wire cutting blade.Automatic sensor compensation system for temperature, voltage and light variations.
Hint:
In case of inductive load, it is necessary to externally protect outputs by means of clampdiodes (1N4001 or equivalent). Please refer to the diagram. Frontplate is not content of the delivery, please order your frontplate.
Technical characteristics
Dimensions (lxhxw) (mm) 102 x 89 x 52
Weight (g) 185
Power supply 12 ÷ 24 Vdc ±10%
Input 35 mA max, 12 Vdc Recognition: 50 mA max, 12 Vdc Acceptance: 340 mA max, 12 VdcMax. current 200 mA a 24 Vdc ±10% (channel 1 to channel 4) 800 mA a 24 Vdc ±10% (channel 5 to channel 6)
Operating temperature 0 ÷ +55°C - 10 ÷ 75% of non condensed humidity
Accepted coins (mm) Ø 16 ÷ 31,5 - thickness up to 3,3 mm Conformity to Standards EN 61000-6-3: Emissions EN 61000-6-1: EMC EN 55022: Immunity from Radio Noises and InterferencesRecognition channels up to 59, all redirectable to outputs.
The first 6 support the Self-Prog mode Outputs Open collection type (NPN)
