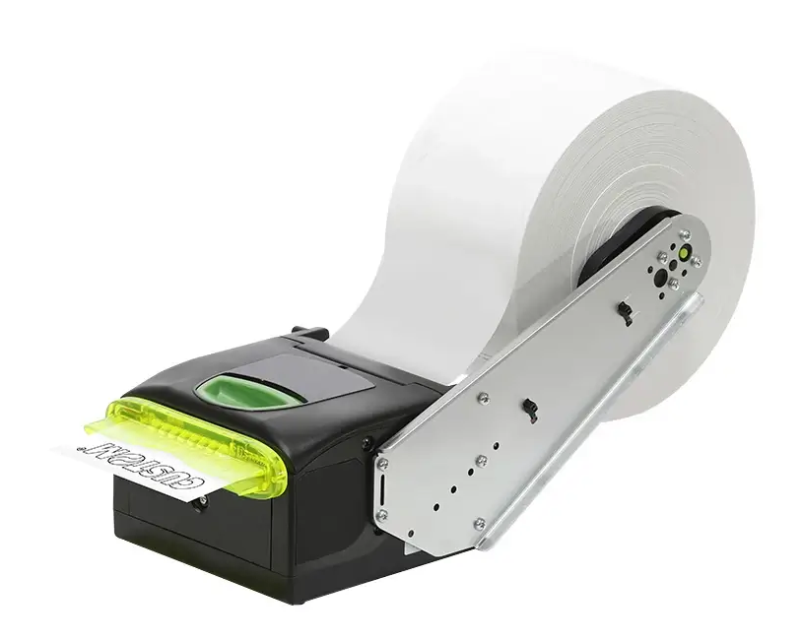

CUSTOM Printer VKP80III USB RS232 REAR (915DX011700300)

VKP80III is the kiosk receipt and ticket printer, a top seller and benchmark in over 70 countries worldwide. Compact, flexible, and robust, it is also rich in features, such as the high-performance processor and the long-lasting print head. It adapts to any kiosk type thanks to the adjustable roll support that can be loaded from both sides. VKP80III is equipped with a patented anti-jam system with printer cleaning command and jam removal, illuminated paper exit slot, and paper presenter with eject and retract functions.

Printing method Thermal with fixed head
Resolution 200 dpi (8 dots/mm)
Printing speed (max) >250 mm/sec
Paper width 50-82.5 mm
Paper weight 55-110 g/m²
External roll diameter Max 150 mm, up to 250 mm with optional roll holder
Roll core diameter 25 mm
Sensors Paper input; paper output; head temperature; ejector position; adjustable black mark sensor; cover open; tilting bulkhead position; low paper sensor (optional)
Emulation CUSTOM/POS; VKP80II
Interfaces RS232; USB; Ethernet
Print Driver Windows® (32/64 bit) - WHQL and silent installation available only on request; Linux (32/64 bit); Virtual COM (Linux or Windows® 32/64 bit); OPOS; Android™; iOS; WOSA XFS
Software Tools PrinterSet; Custom Power Tool; Status Monitor; Custom Windows® API; Driver Manager
Special features Patented loop management; retract capability; continuous mode; automatic ticket-pull detection; optional roll holder; optional black or blue bezel; optional shutter; optional near-paper-end sensor
Power supply 24 Vdc ± 10% Typical consumption 1 A
Print Head Life 200 km / 100M pulses
Cutter Full cut
Cutter life 1,000,000 cuts
Operating temperature -20°C ~ 70°C
Dimensions (L x W x H) 143.5 x 116 x 76.4 mm
Weight 0.8 kg
Box contents device; quick guide
