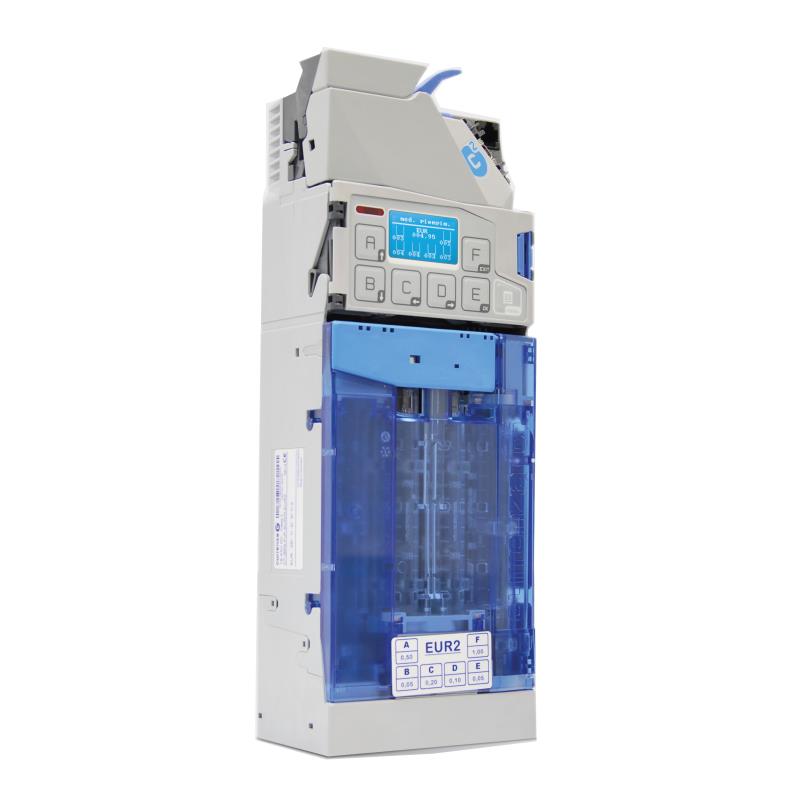

Currenza C2 Coin Validator and Tube Changer
The Currenza C2 is a high-performance coin validator and tube changer designed for vending machines and other applications requiring automatic change payout. The system has been developed for high reliability, flexible configuration and secure coin payout.
The integrated PRP system (Payout Redundancy Protection) increases operational reliability and helps reduce vending machine downtime. The cassette with 6 tubes provides a high change capacity and can be configured flexibly according to the required coin denominations.
Three independent payout motors ensure fast and reliable coin dispensing. Optical sensors monitor the coin levels and support reliable operation even under demanding environmental conditions.
Features
• Acceptance and change payout for a wide range of coins
• Cassette with 6 coin tubes for high change capacity
• Modular design for flexible configuration of the coin tubes
• Three independent motors for reliable coin payout
• PRP – Payout Redundancy Protection for increased operational reliability
• Automatic optimisation of coin payout according to the machine configuration and user payment behaviour
• Payout speed of up to 6 coins per second
• Acceptance speed of up to 3 coins per second
• Patented coin validation system with MFT technology
• Coin recognition based on up to 40 validation parameters
• Optical sensors for monitoring coin levels
• Easy access to the coin validation and sorting area for maintenance and cleaning
• Simple programming and configuration on the Blue version via keypad and display
• Support for the HENRI programming module for changing configurations and updating firmware directly on site
• HENRI module with USB connection for PC communication and SIM card slot
Versions
Currenza C2 Blue
Executive (EXE) and MDB, with keypad and display
Currenza C2 White
MDB or Executive/MDB, without keypad and display
Tube Capacity for Euro Coins
€2.00: up to 72 coins
€1.00: up to 69 coins
€0.50: up to 67 coins
€0.20: up to 75 coins
€0.10: up to 83 coins
€0.05: up to 95 coins
€0.02: up to 97 coins
€0.01: up to 97 coins
The actual total capacity depends on the selected tube configuration and the coin denominations used.
Technical Data
Dimensions (W × H × D): 137.75 × 377.10 × 80 mm
Supply voltage:
BDV: 18–43 V DC
MDB: 18–43 V DC
MDB battery: 11–43 V
Executive: 24 V AC
Power consumption:
Stand-by: max. 2.5
During coin payout: max. 16.0
With three motors: max. 48
During coin acceptance: max. 16.0
Operating temperature: -25 °C to +80 °C
The Currenza C2 is particularly suitable for vending machines and payment systems where high coin acceptance performance, large change reserves and reliable automatic coin payout are required.
