Interface for electronic coin mechanism 1 output
Interface for electronic coin mechanism 1 output
Interface for electronic coin mechanism 1 output

Interface for electronic coin mechanism 1 output

Product No.:
5397000044
on stock - approx. 1-3 days on stock - approx. 1-3 days (abroad may vary)
Stock:
10 pc(s).
Weight:
0,026 kg per pc(s).
Sliding scale prices
1-2 pc(s).
per 16,95 EUR
3-4 pc(s).
per 16,75 EUR
> 4 pc(s).
per 16,45 EUR
16,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:
Add to wish list
Price offer
Ask about product
Description

Interface for electronic coin mechanism 1 output

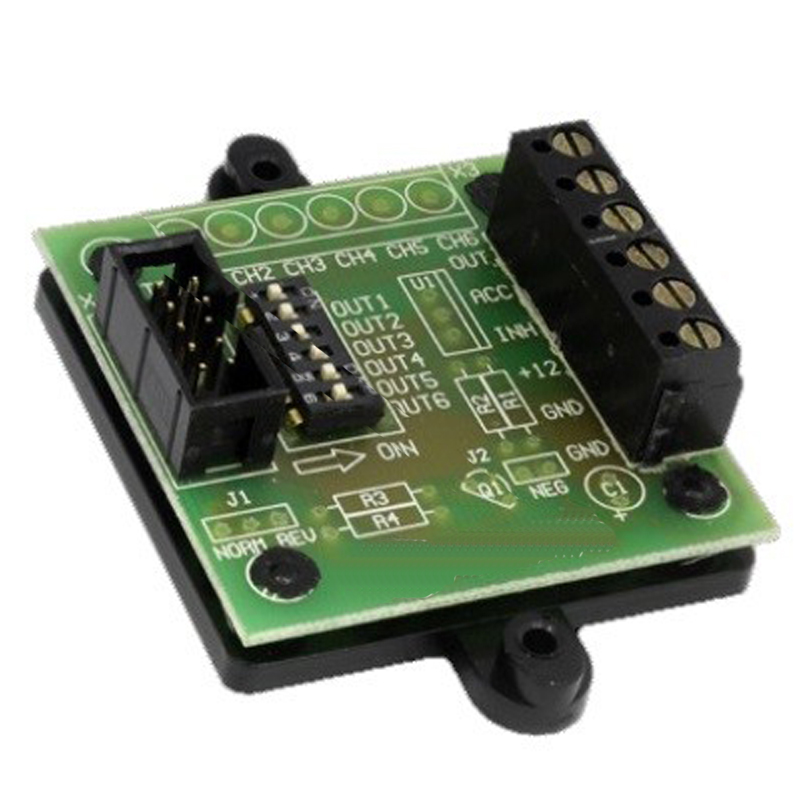

Adapter circuit board for electronic coin validator with 1 output channel selectable via DIP switch.

With this interface board you can connect all coin validator variants and select the output channel of the coin validator with the 6-way DIP switch.
Simply use the 6-pin screw terminal strip to connect and plug in the 10-pin ribbon cable to the coin validator.
Compatible with the following versions: 5397000049, 5397000050

Technical specifications:
Dimensions: 50 x 70 x 22mm
Weight: 0.028kg

Connections:
X1 10 pin connector: for coin validator connection
X2 6-pin screw terminal:
Out output coin validator dip switches 1-6
ACC output coin validator Pin5 (Out 7 Totalizer)
Inhibit (release coin validator) is switched to GND
+ 12 volts
ACC output coin acceptor channel
GND Ground
GND Ground
DIP switch 6 pin
Out 1 to Out 6
