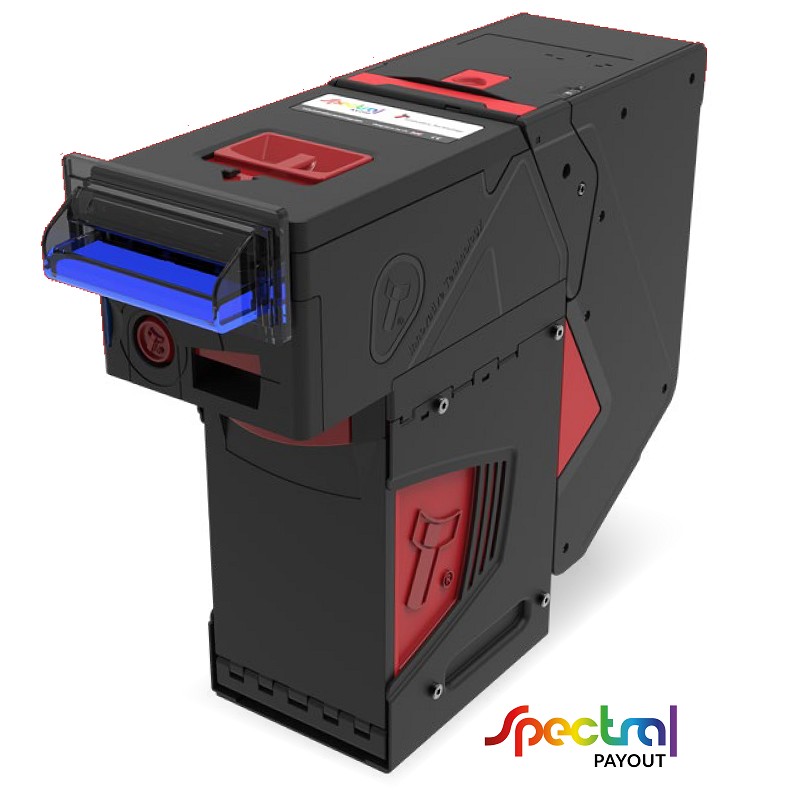

Spectral Payout

The Spectral Payout boasts superior mixed denomination note recycling and the most technically advanced note validation technology. An 80 note ‘true’ mixed denomination recycler the Spectral Payout can store all denominations from a given currency, eliminating coin starvation & reducing the coin float level required to keep machines operational. State of the art spectral sensors offer complete note image capture (highest spectral coverage) to authenticate the validity of notes and detect stained notes. Auto-centering technology straightens notes before reading and all notes in the Spectral Payout can be transferred to the cashbox for easy collection.

Recommended Applications
Automated change transactions
Gaming, AWP
Self Serve & Retail
Vending
Kiosk
Casino
Parking and Ticketing

Features

Superior mixed denomination banknote recycler
100% note image capture – highest spectral coverage
Eliminates coin starvation
Stained note detection
Reduce operational collection costs
Collects, validates and stores notes for future payout
Jam free, high speed payout
Able to pay out all accepted notes
Accepts notes up to 85mm wide
Match down function - The Smart payout modul will be automatically down- or upgraded matching with the firmware

Please note:
Standard setting is 5-500 Euro protocol SSP!
If you need another protocol or currencies, please let us know when you place your order!

When completing the shopping card - in the section "Payment" - you will find the "personal memo" field.
Here you can announce your desired programming.

Options
All available Spectral datasets: full listing on our website
Cashbox Options:
  500 notes
1000 notes
Bezel Options
82/85 mm width
Metall bezel
Various illumination options

Protocols:
SSP - Smile Secure Protocol (Software libary for C++ und C # avaible)
ccTalk

Interface:
USB with IF17
RS232
Open Collector

Technical Data
Recycler Capacity
up to 80 mixed notes
Note Dimensions
Accepts Width: 60 - 85 mm Length: 115 - 170 mm
Recycles Width: 60 - 82 mm
MCBF 100,000
Dimensions: w x d x h: 121 x 348 x 303 mm
Weight: 5.5kg
Power supply: 12 V / 24V
Standby: 400mA
Running: 3 A
Peak: 5.5 A
