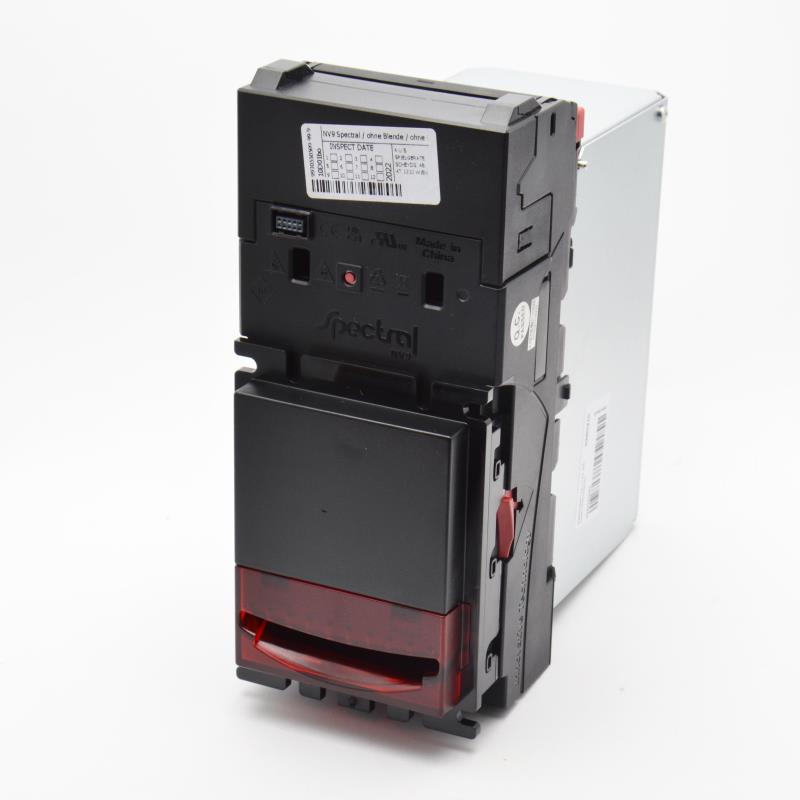

Bill validator/Bank reader NV9 Spectral vertical
The NV9 Spectral is a highly secure and technologically advanced banknote validator, offering casino level security at a mid-range price. State of the art spectral sensors provide high resolution imaging, scanning 1.28 million data points to authenticate the validity of notes. This versatile banknote validator can be mounted horizontally or vertically, with cashbox and bezel options to suit all applications and a micro SD card for data logging.
A note float module can be added to provide note recycling capability - See NV22S for more information.
Features
Full note high resolution imaging - 1.28 million data points
Faster note to note processing
Stained note detection
Optical and mechanical anti-strimming technology
Modular design - recycler or ticket printer available
Technical Specification
Power
Requirements: 12 V
Standby: 0.2 A
Running: 1 A
Peak: 1.5 A
Bezel Options
Rainbow illumination
66, 69, 82mm width
Horizontal
Vertical up / down
Various snout options
Cash Box Options
300 / 600 slide
300 / 600 clip
300 lockable
Protocols
SSP
eSSP
ccTalk
MDB (with Interface IF5 MDB Voltage Converter)
Interfaces
USB
Open collector
MCBF 200,000
Weight 1.4 kg
Please note:
Bill validator supplied without connection cable, please when ordering cable specially to order.
Alternatively with 300 or 600 bill cashbox available
Front bezel:
Standard PA189
Optional PA181, PA186,PA188, PA296, PA257, PA323 und PA268
Cashbox:
Standard Slide In PA194
Optional Clip On
