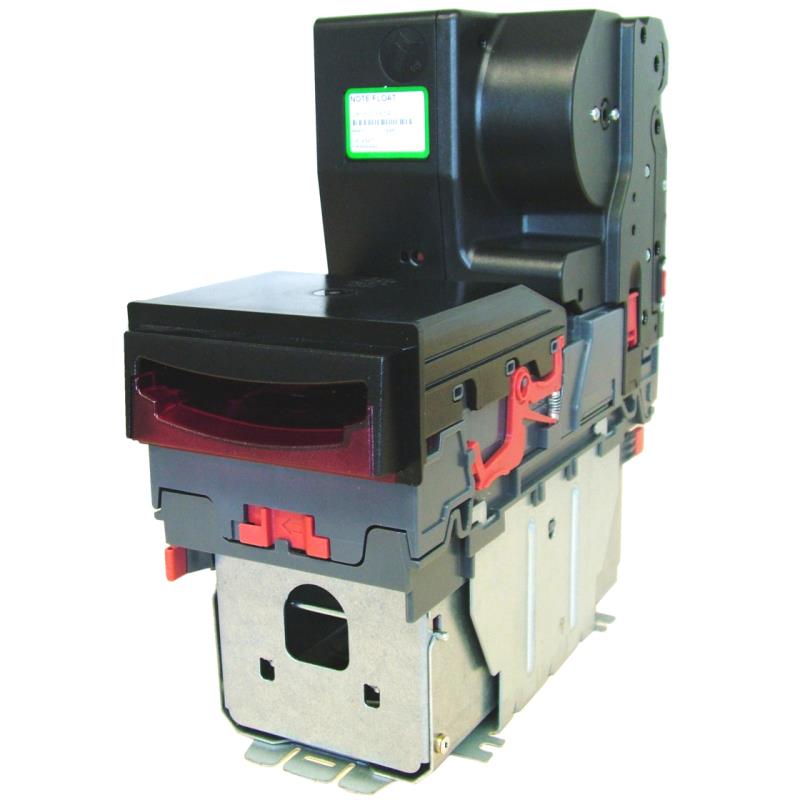

Bill validator/Bank reader NV11 with Note Float

The NV11 is a bank note validator and Note Float payout unit.
With a 30 note capacity of one single denomination, the NV11 is capable of dispensing notes as change or prizes
- helping to alleviate the problem of coin starvation and keep machines running.
The NV11 comes with a standard 300 note capacity cashbox and uses eSSP (encrypted Smiley Secure Protocol).
The NV11 leaves the factory preset to at least one currency so is ready for immediate installation.
NV11 = NV9 + NOTE FLOAT

Recommendes Applications:
AWP machines, bingo machines
Vending machines e.g. hot/cold drinks, medical items, cigarettes etc. etc.

Features:
Collects, validates and stores notes for future payout
Jam free, high-speed payout
Dispenses notes in 3 seconds
Stores notes up to 150 mm long
Secure unit
Quick transactions with a high acceptance rate of typically 99,8% using SPF technology
Match down function - The note float modul will be automatically down- or upgraded matching with the NV11 firmware

Please note:

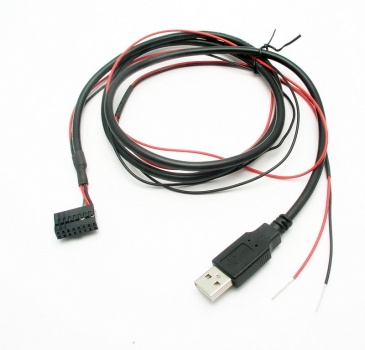

Bill validator supplied without connection cable, please when ordering cable specially to order.
Alternatively with 600 bill cashbox available

Standard setting is 5-500 Euro protocol SSP!
If you need another protocol or currencies, please let us know when you place your order!

When completing the shopping card - in the section "Payment" - you will find the "personal memo" field.
Here you can announce your desired programming.

Interface Protocol:
SSP - Smile Secure Protocol (Software libary for C++ und C # avaible)
CC-talk - ccTalk & ccTalk 2
MDB - Multi-Drop-Bus: MDB-Level 2
PL1 - Pulse Mode
PAR - Parallel
BIN - Binary

Technical specifications:
30 note capacity
Horizontal mounting only
Standard cashbox capacity: 300 notes
(other cashboxes available on request)
Combined dimensions:
246x222x104 mm
Combined Weight: 2.2 kg
Power supply: 12V +/- 10%
USB capable
eSSP Protocol (encrypted SSP) & CCTalk
