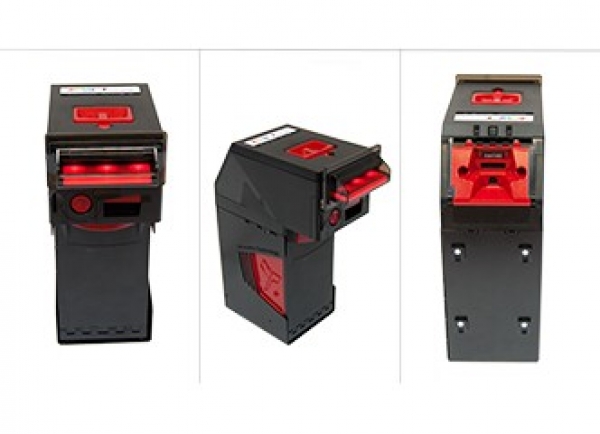

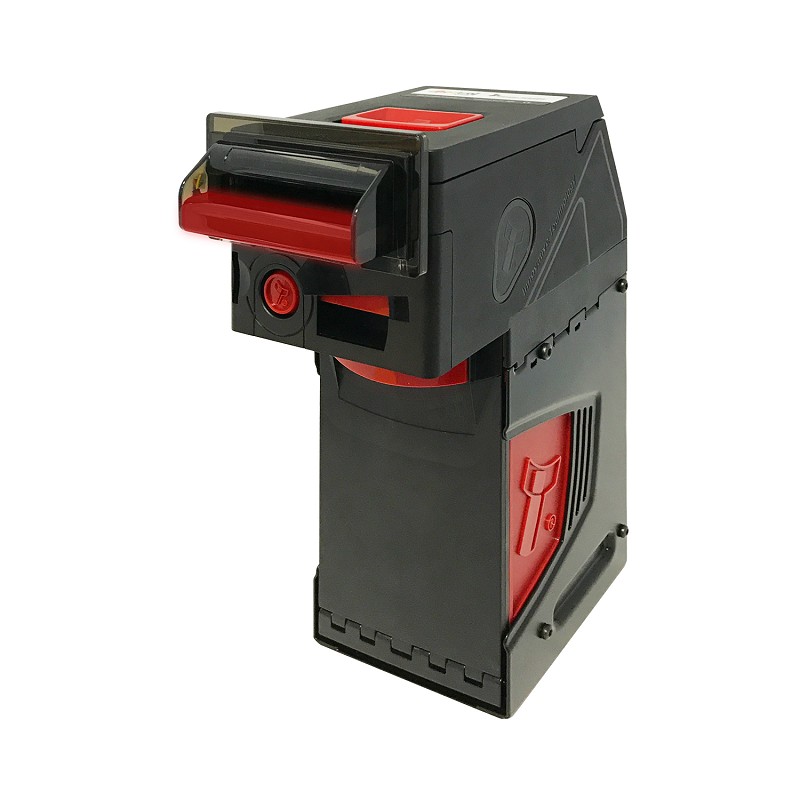

Banknote validator NV200 Spectral
The NV200 Spectral is a highly secure and technologically advanced banknote validator. State of the art spectral sensors offer complete note image capture by scanning over 4.8 million datapoints to authenticate the validity of notes. The unit boasts 99%+ first time acceptance of new and street grade notes with a note to note processing time of 2 seconds. The unit contains a number of security features including new optical anti-strimming technology that delivers outstanding fraud protection. The NV200 Spectral’s cutting-edge note centring mechanism, together with 4-way barcode acceptance bring the user exceptional note handling and increased ticket acceptance rates. Add-on modules are available; SMART Payout to allow mixed denomination note recycling and SMART Ticket to allow ticket in/ ticket out.
Features
100% note image capture - 4.8 million datapoints
99%+ first time acceptance of new & street grade notes
2 second note to note processing
Modular design - recycler or ticket printer available
Technical Specification
Power Requirements: 12 / 24 V
Standby: 400 mA Running: 1.5 A Peak: 3 A
Please note:
Bill validator supplied without connection cable, please add separate to you order.
Standard setting is 5-500 Euro protocol SSP!
If you need another protocol or currencies, please let us know when you place your order!
When completing the shopping card - in the section "Payment" - you will find the "personal memo" field.
Here you can announce your desired programming.
Bezel Options
82 / 85 mm width
Metal bezel
Self aligning bezel
Various illumination options
Note Dimensions
Width: 60 - 85 mm
Length: 115 - 170 mm
Protocols
SSP Smile Secure Protocol (Software libary for C++ und C # avaible)
ccTalk
Interfaces
USB 2.0
RS232
Open Collector
Opto-isolated
Cashbox Options
500 notes
1000 notes
MCBF
200,000
Weight
3.2 kg
