Illuminated Push Button round 61mm blue

Product No.:: 2390000287
Shipping time:: approx. 3-4 weeks (abroad may vary)
Weight:: 0,0396 kg per pc(s).

Sliding scale prices

1-2 pc(s).: per 14,95 EUR
3-4 pc(s).: per 14,75 EUR
5-9 pc(s).: per 14,50 EUR
10-24 pc(s).: per 14,30 EUR
> 24 pc(s).: per 14,05 EUR

14,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

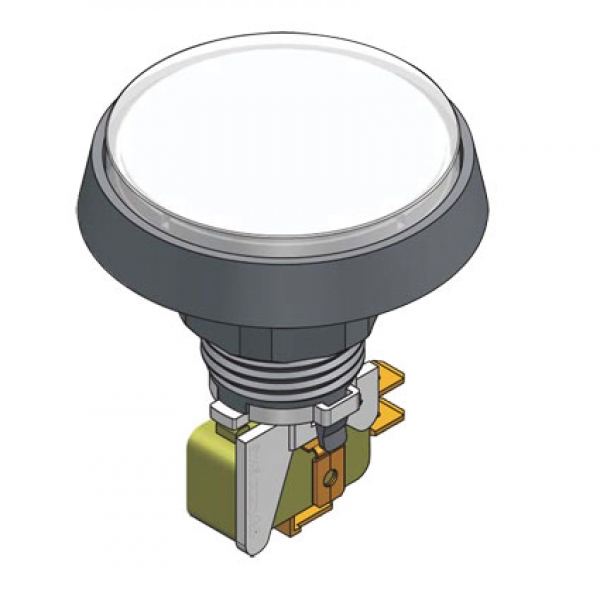

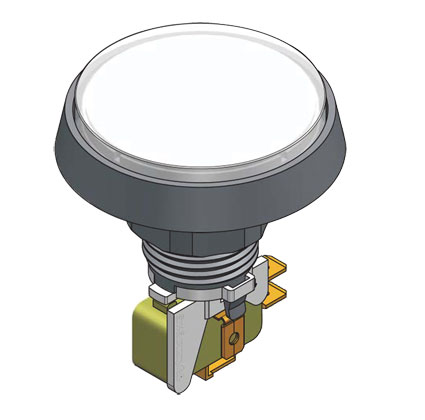

Illuminated Push Button round 61mm blue

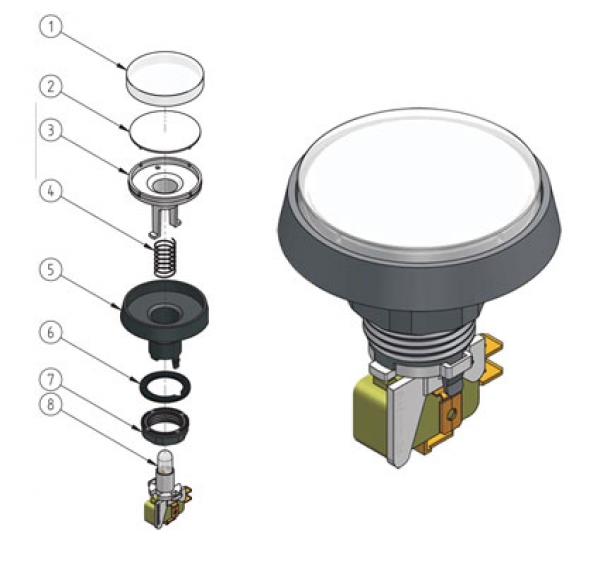

This illuminated push button is a new product development, which refers to the fixation of the push button and the lampholder. The new 'Easy Clip System' has 2 lugs at the push button and 2 eyelets at the lampholder, which clip together when you assemble both components. By simply compress the 2 lugs you can separate them. This release brings a lot of advantages: Fast, easy, precise and ergonomic system of fixation without change the previous lamp holder and bezel properties.

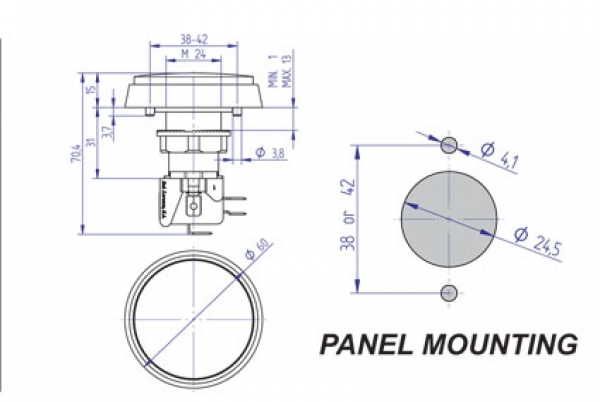

Technical specification:
Diameter push button: 61 mm,
Diameter push button thread: 24,5 mm
Deep push button: 46 mm,
Deep incl. lampholder: 70,4 mm
Weight: 0,033 kg

Important Hints:
Available in different colours
Matching lampholder: Part.-No. 2390000087
(Lampholder with Easy Clip System)
Matching lamp: T10 Wedgebase
Matching LED: Triple LED

Downloads

Datenblatt Leuchttaster 61 mm rund (215.75 KB)

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.

This product was added to our catalog on Sunday, 08. September 2024.

For more information, please visit the home page for this product.
