Illuminated Push Buttons 32 mm round

Name: Illuminated Push Buttons 32 mm round
SKU: 2390000011
Price: 9.95 EUR
Availability: InStock
Rating: 4 (1 reviews)

Product No.:: 2390000011
Shipping time:: (abroad may vary)
Stock:: - pc(s).
Weight:: - kg per pc(s).

2390000011-Farbe:

Sliding scale prices

1-2 pc(s).: per 9,95 EUR
3-4 pc(s).: per 9,80 EUR
5-9 pc(s).: per 9,65 EUR
10-24 pc(s).: per 9,50 EUR
> 24 pc(s).: per 9,35 EUR

9,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

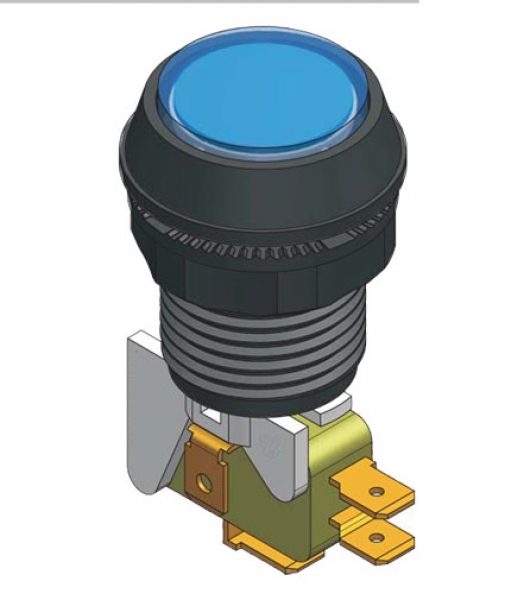

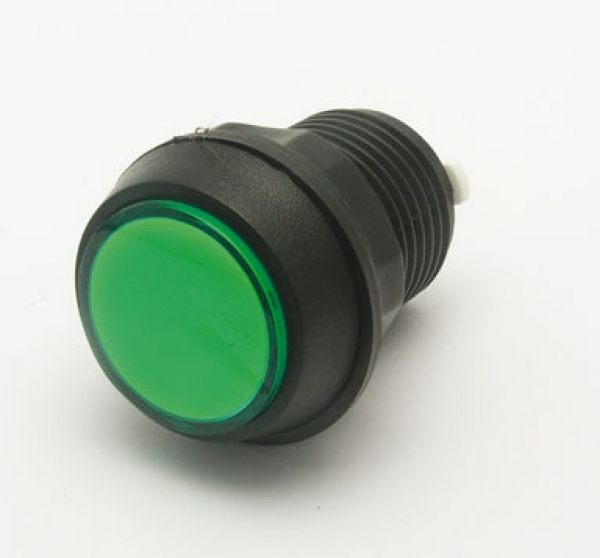

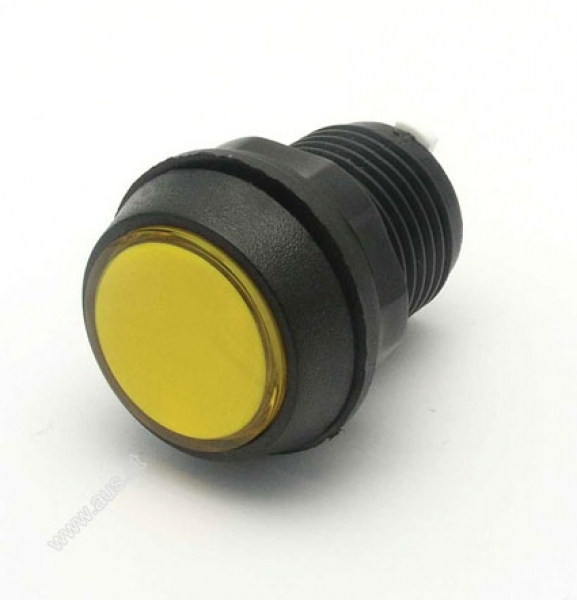

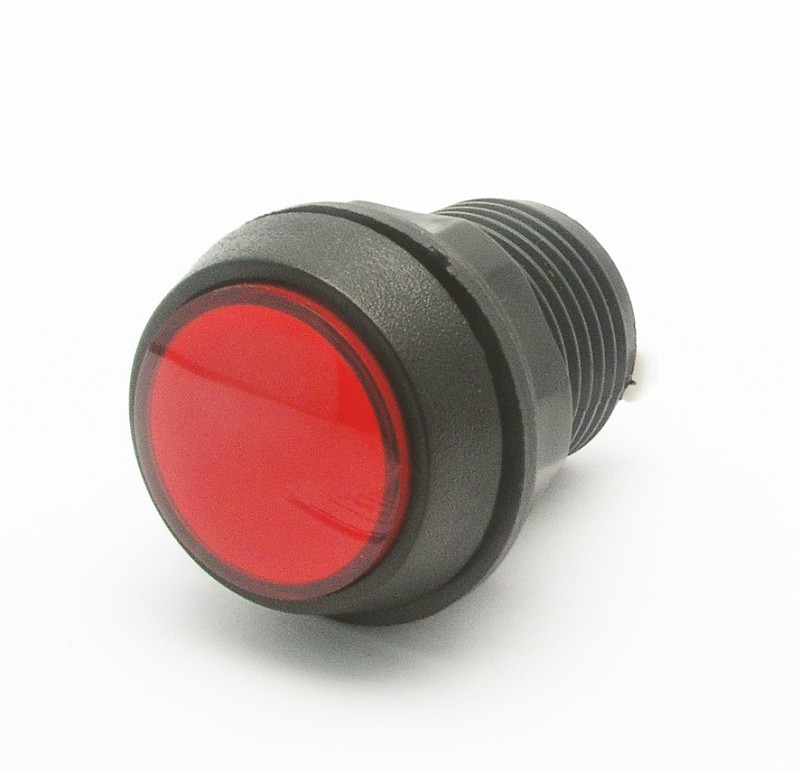

Illuminated Push Buttons 32 mm round

Designed for Gaming and Amusement market by it´s single shape and large dimension. Gaming machines where small round Push Button, classic and robust are needed.

Made from ABS/Nylon. Individual inscription, by inserting a foil between lens cap and legend disk.
No tools necessarily for service and assembly works. Resistant to environmental influences and rough treatment.
Applications:
Gaming and Amusement Vending Machines
Feature:
Robust assembly.
Large number of colours available.
Illumination with Led or T10 Lamp.
Microswitch variety
This model is available in two kinds of fixation, standard Plug-in and Easy Clip System (ECS ).

Optionen:
On request with Easy Clip-System (ECS).
Standardmicrowitch with 6,35x0,4 or 6,35x0,7 or 4,75x0,7 Fast-On

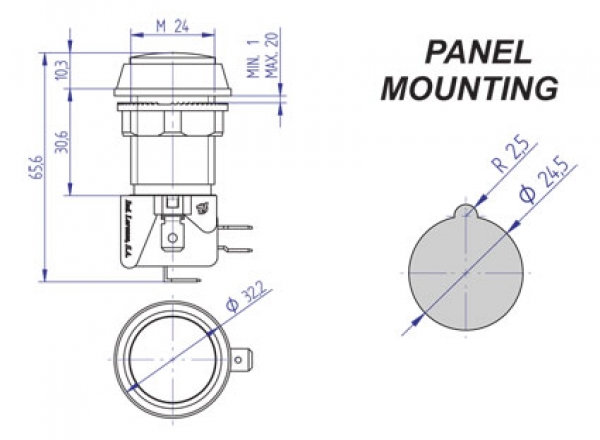

Technical detail:

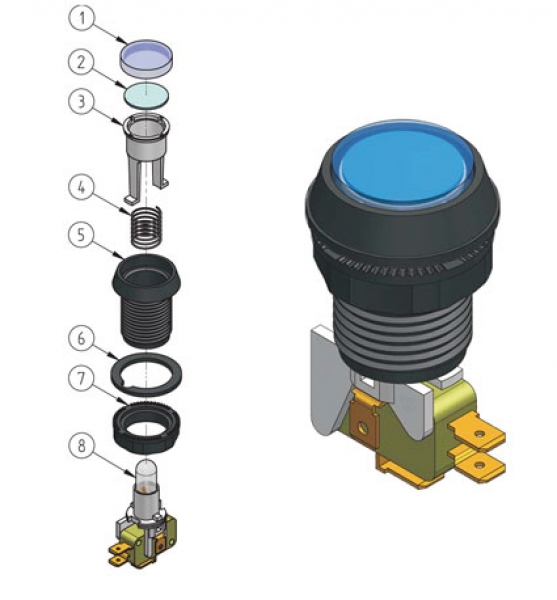

Standard Plug-in System
Lampholder with Standardmicroswitch
Socket for T10 Lamp or LED
Mikroswitch with NC and NO Function

Hint:
Please order Lampholder and Lamps separate.

Downloads
