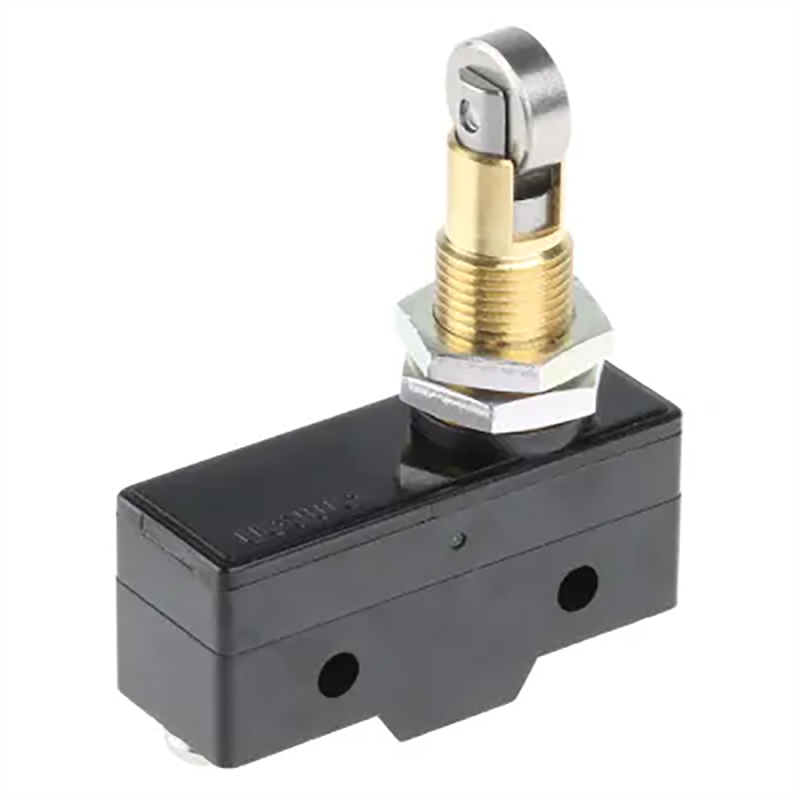

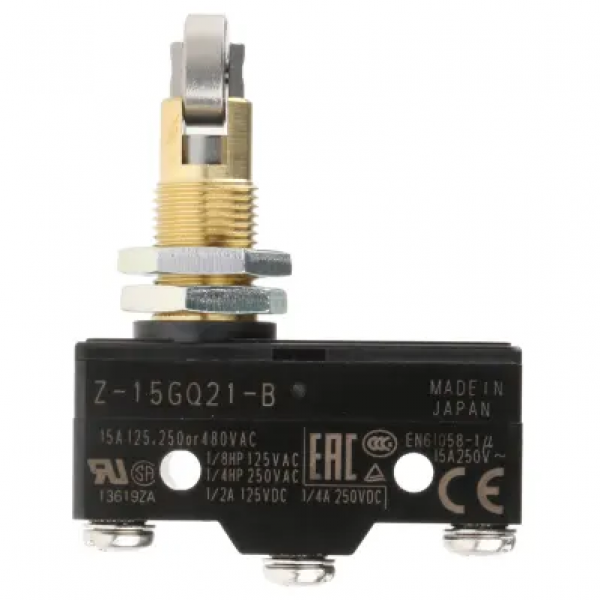

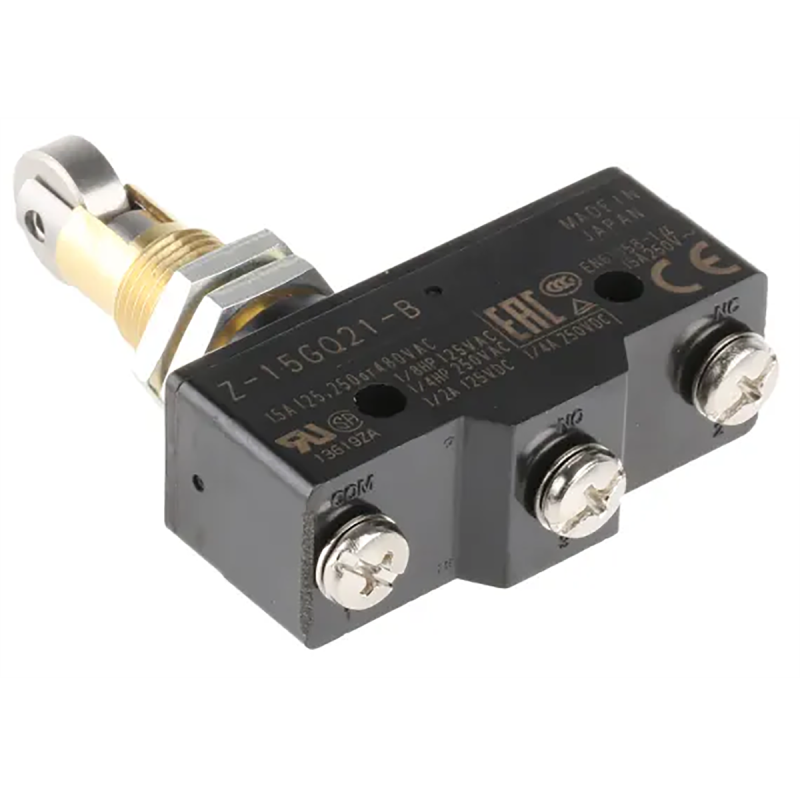

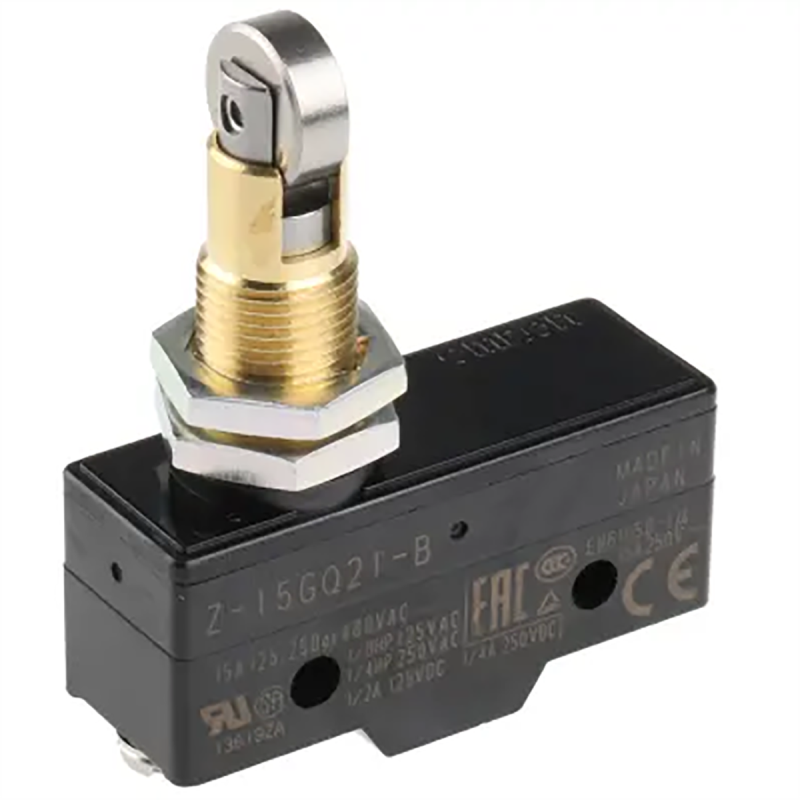

Microswitch with roll

NEW

Microswitch with roll

Product No.:: 9930300015
Shipping time:: on stock - approx. 1-3 days (abroad may vary)
Stock:: 1 pc(s).
Weight:: 0,007 kg per pc(s).

49,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

End of stroke switch roller, 1-pole changeover switch, IP00, 250 V AC, 15 A

Autodrom, scooter, accelerator pedal

Technical data:
Brand: Omron
Actuator type: Roller
Product type: Limit switch
IP rating: IP00
Contact configuration: 1-pole changeover switch
Connection type: Screw
Switching current: 15 A
Series: Z
Switching voltage DC: 250 V DC
Switching voltage AC: 250 V AC
Min. operating temperature: -25°C
Max. operating temperature: 80°C
Depth: 17.45 mm
Width: 49.2 mm
Standards/approvals: CE
Length: 58.9 mm
Hazardous area approval: No
Mounting position: Front panel
Operating force: 3.43 N
Mechanical life: 10,000,000 cycles

Downloads

Omron Endschalter (368.11 KB)
