NEW

Tumbler Key Switch Lock KD 36,50 mm - 1 7/16" key no return black

Product No.:
9930100466
on stock - approx. 1-3 days on stock - approx. 1-3 days (abroad may vary)
Stock:
10 pc(s).
Weight:
0,063 kg per pc(s).
Sliding scale prices
1-2 pc(s).
per 9,95 EUR
3-4 pc(s).
per 9,80 EUR
5-9 pc(s).
per 9,65 EUR
10-24 pc(s).
per 9,50 EUR
25-49 pc(s).
per 9,35 EUR
50-99 pc(s).
per 9,25 EUR
> 99 pc(s).
per 9,10 EUR
9,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:
Add to wish list
Price offer
Ask about product
Description

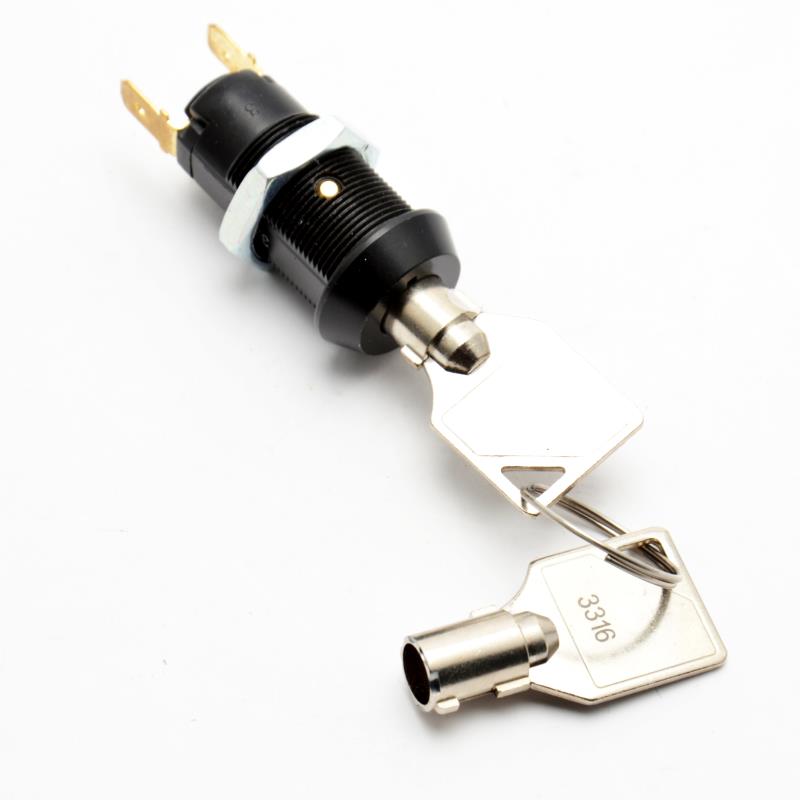

Tumbler Key Switch Lock KD 36,50 mm - 1 7/16" key no return black

Switchlocks on-off-on 7-pin tumbler lock.
2 pcs. Tubular key nickel plated. Off/On function

Contained in the scope of supply:
- 1 Lock with switch automatic key no return
- 2 keys (keyed different)
Technical data:
Automatic key return
50 000 combinations available
Lenght: 36,50 mm - 1 7/16"
Thread lenght: 20 mm
Weight: 0,067 kg
Switchlock supplied with 6,3 mm 0,250" quick connect terminals
Contact rating: 4A 125V AC, 2A 250V AC
Insolation resistance: 10 milli Ohms max.
Insulation resistance 500 mega Ohms min. (500 DC)
Dielectric strenght 1500 AC - 1 minute
MTBF 15 000

Notes:
This switchlock is also avaible as a lock series with key alike KA version
