Venia Security Lock KD 16 mm - 5/8"

The Venia security cam locks use a 14 pin system, 10 pins on the flat keyside, and 2 side pins on each side. Brass housing with high quality spindle and bright chrome finish. A security collar is included with every Venia lock to prevent any attempts to turn the lock with tools. Key made of nickel silver assures longer lifetime and trouble free operation.

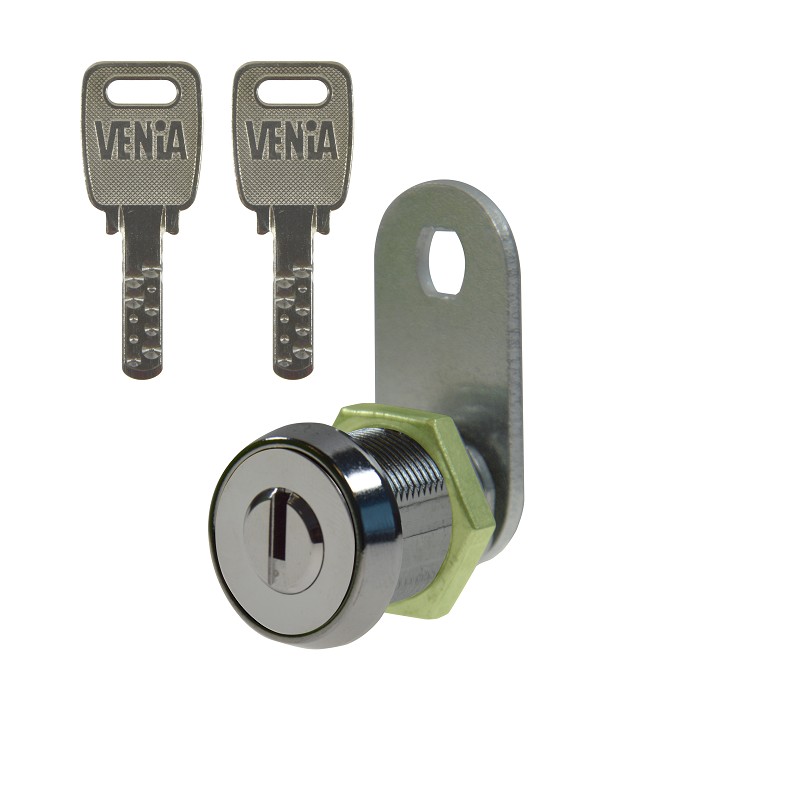

Contained in the scope of supply:
- 1 Lock
- 2 keys (keyed different)

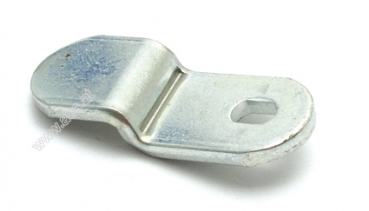

- 1 cam
Technical data:
SSecurity class S3

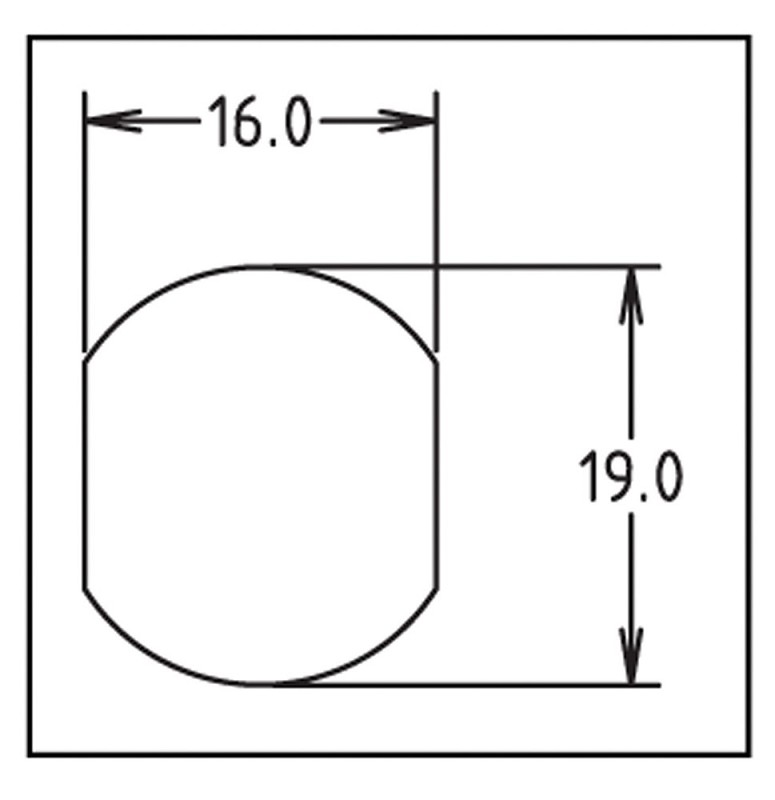

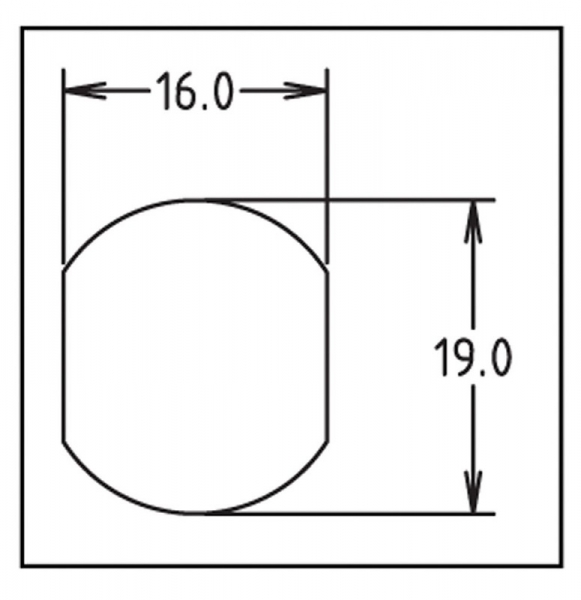

Hole for cam 5x7 mm

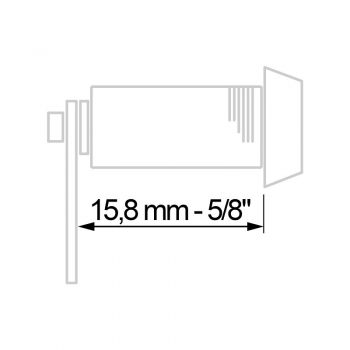

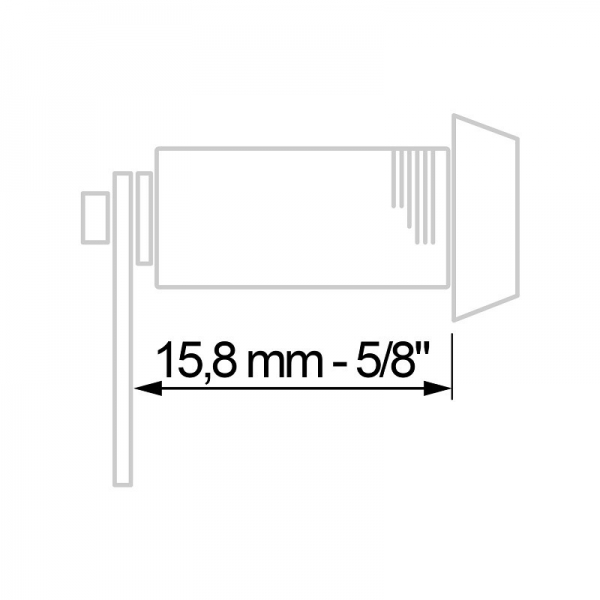

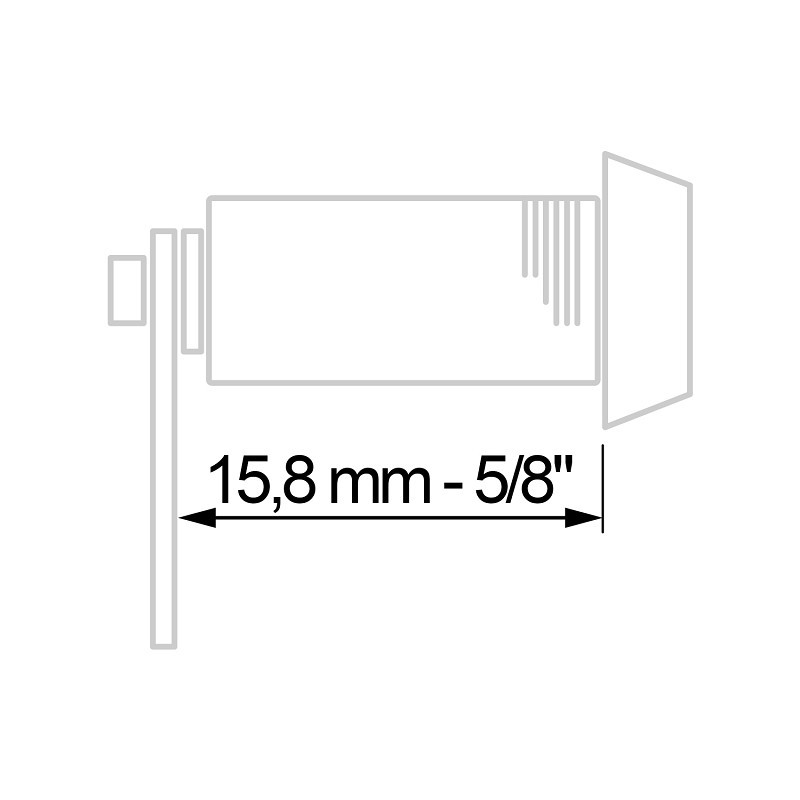

Lenght: 16 mm - 5/8"
Outside diameter: 20 mm
Collar height 2 mm
Weight: 0,086 kg
Notes:
Different lengths 16mm (5/8"), 22.3mm (7/8") and 28.6mm (1-1/8").
Supplied as key alike and key different.
Available as cam lock or switch lock.
Key alike locks in series of 100 or more with 5 keys per serie.
