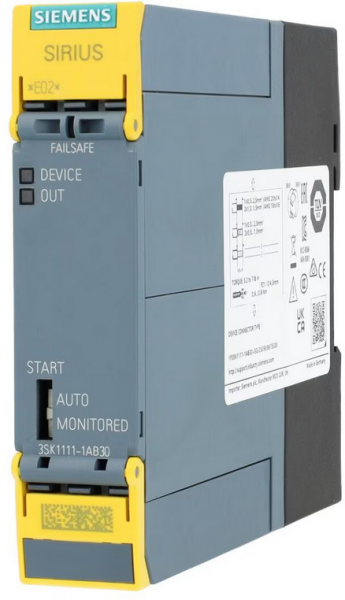

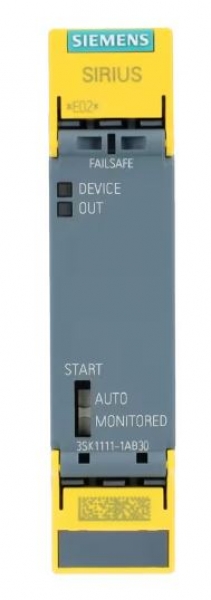

SIRIUS Safety Relay Basic Unit Standard 3SK1111-1AB30

SIRIUS Safety Relay Basic Unit Standard 3SK1111-1AB30
Series relay enabling circuits: 3 NO contacts plus relay signaling circuit: 1 NC contact
Us = 24 V AC/DC, screw terminal connection

3SK1111-1AB30
1 NC contact, Us = 24 V AC/DC, screw terminal connection.
SIRIUS 3SK1 safety relay for stand-alone safety applications.

The 3SK111 Standard basic units are characterized by simple and flexible functionality and therefore offer an economical entry into the world of safety relays. They are ideally suited for safety functions with only a few sensors and a small number of enabling circuits.

These devices have comprehensive worldwide approvals, making them ideally suited for global use and export. The devices are available as 24 V versions or with a wide voltage range, with relay or semiconductor outputs, and consistently with screw terminals or spring-loaded terminals Push-In.

Extensive accessories, such as sealable covers, plug-in lugs for wall mounting, and coding pins, make handling easier.

The 3SK safety relays replace the proven 3TK28 series.
Safety is a SIRIUS business.

Technical Data:

• UL approval: yes
• With start input: yes
• With feedback circuit: yes
• Suitable for monitoring magnetic switches: yes
• Suitable for monitoring emergency stop circuits: yes
• Suitable for monitoring optoelectronic protective devices: yes
• Suitable for monitoring position switches: yes
• Width: 22.5 mm
• Height: 100 mm
• Depth: 121.6 mm
• Type of electrical connection: screw terminal connection
• Rated control supply voltage Us at AC 50 Hz: 24.0 V
• Rated control supply voltage Us at AC 60 Hz: 24.0 V
• Rated control supply voltage Us at DC: 24.0 V
• Performance Level according to EN ISO 13849-1: Level e
• Voltage type for actuation: AC/DC
• Input evaluation: single-channel and two-channel
• SIL according to IEC 61508: 3
• TÜV approval: yes
