Position switch, metal enclosure, 40 mm, according to DIN EN 50041, device connection 1x (M20 x 1.5)
Position switch, metal enclosure, 40 mm, according to DIN EN 50041, device connection 1x (M20 x 1.5)

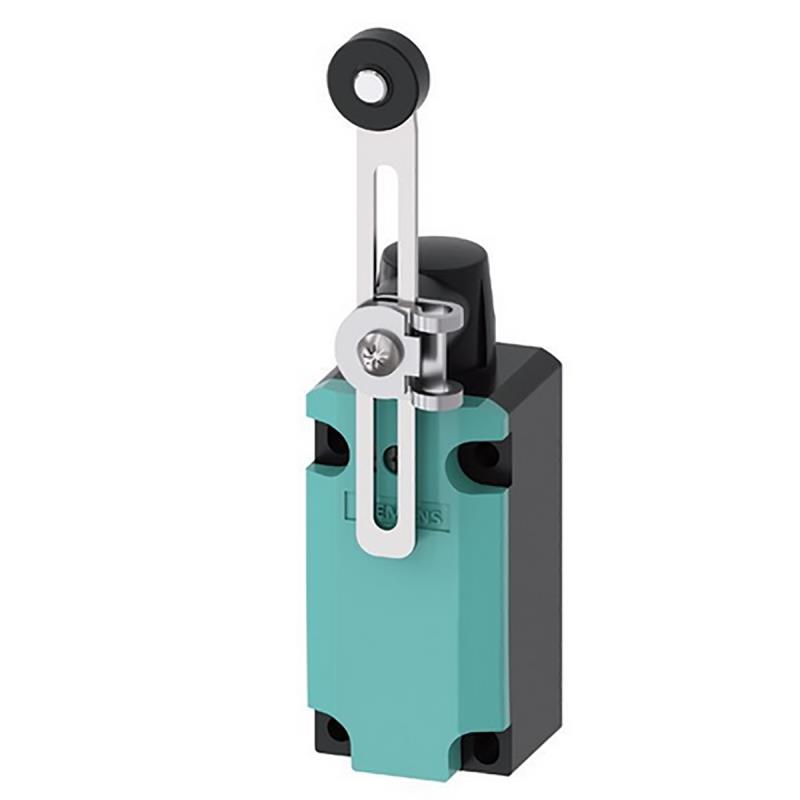

Position switch, metal enclosure, 40 mm, according to DIN EN 50041, device connection 1x (M20 x 1.5), 1 NO / 1 NC snap-action contacts, swivel actuator adjustable right/left, with length-adjustable metal lever, 100 mm long, and 19 mm plastic roller. Mechanical position switches SIRIUS 3SE5 are used for position and presence detection of machine parts and for position monitoring of protective equipment. The modular design of the 3SE5 position switches allows a wide range of variants with a small number of stock types.
The wide variety of connectors and rollers fulfills almost all requirements in everyday industrial applications. LEDs indicate the current status of the device. Thanks to quick-connect technology, connection times can be significantly reduced. Switching points and mounting dimensions comply with EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). With the appropriate switch configuration, the highest safety requirements up to PL e and SIL 3 can be met. The integrated ASIsafe electronics require only low power consumption.
Various enclosure sizes are available, with different contact elements, in plastic or metal, or in compact design. Some variants are optionally available with LED status indication and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the version, actuator heads and connectors as well as additional mounting/connection accessories are available as accessories. Safety is a SIRIUS business.
Technical data
Sensor width: 40 mm
Sensor height: 53.2 mm
Sensor length: 192 mm
Rated operating current Ie at AC-15, 24 V: 6 A
Rated operating current Ie at AC-15, 125 V: 6 A
Rated operating current Ie at DC-13, 24 V: 3 A
Rated operating current Ie at DC-13, 125 V: 0.55 A
Switching function: Snap-action contact
Latching switching function: No
Positive opening operation: No
Number of safety auxiliary contacts: 0
Number of normally closed contacts: 1
Number of normally open contacts: 1
Number of changeover contacts: 0
Interface design: None
Interface design for safety-related communication: None
Housing design: Cuboid
Housing material: Metal
Housing coating: Painted
Design of the actuating element: Rotary lever
Orientation of the actuating element: Straight roller plunger
Type of electrical connection: Other
With status indication: No
Suitable for safety functions: No
Explosion protection category for gas: None
Explosion protection category for dust: None
Ambient operating temperature: -25 to 85 °C
Degree of protection (IP): IP66 / IP67
Degree of protection (NEMA): 12
