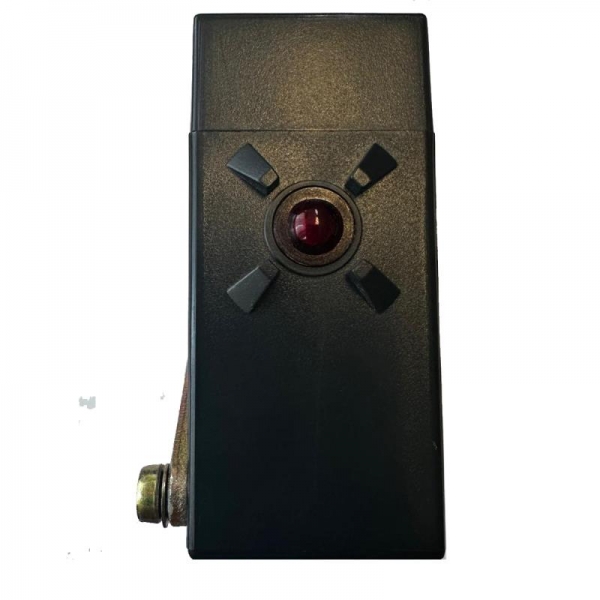

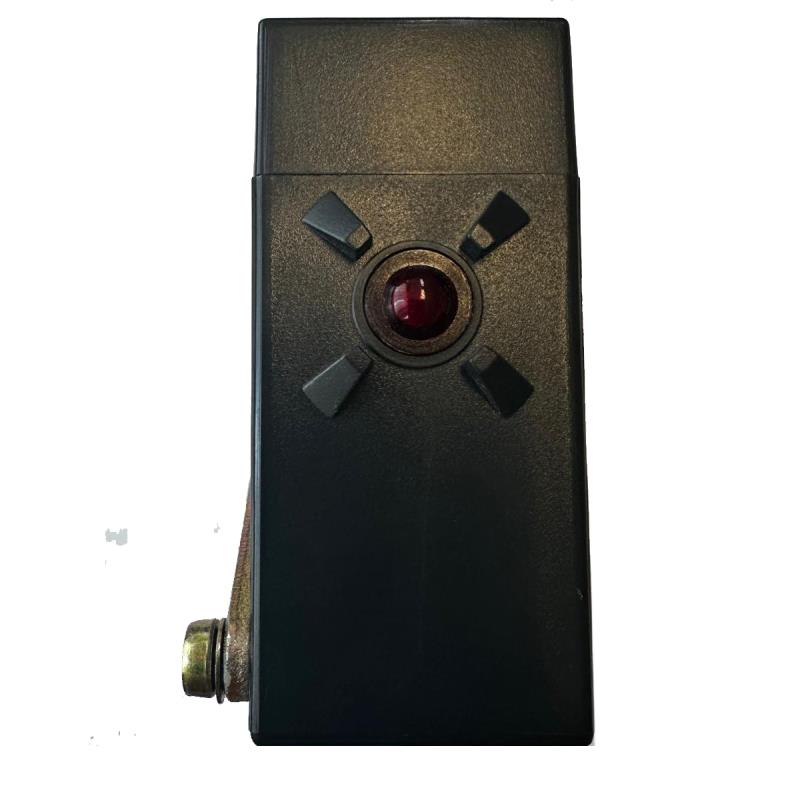

Photoelectric sensor DATALOGIC RT7-34

The Datalogic RT7 34 is a high-quality photoelectric sensor for reliable object detection in industrial applications. The sensor is ideal for machines, conveyor systems, vending machines, handling systems and general automation solutions.

Thanks to its wide supply voltage range of 15 to 275 V AC/DC, the Datalogic RT7 34 can be used flexibly in different systems. This version works as a proximity sensor / diffuse reflective sensor and is equipped with a relay output.

The sensor stands out due to its robust design, easy installation and reliable object detection. With protection rating IP66, it is also suitable for more demanding areas of use.

Technical Data

Manufacturer: Datalogic

Model: RT7 34

Sensor type: Photoelectric sensor / proximity sensor

Function: Proximity scanner

Supply voltage: 15 to 275 V AC/DC

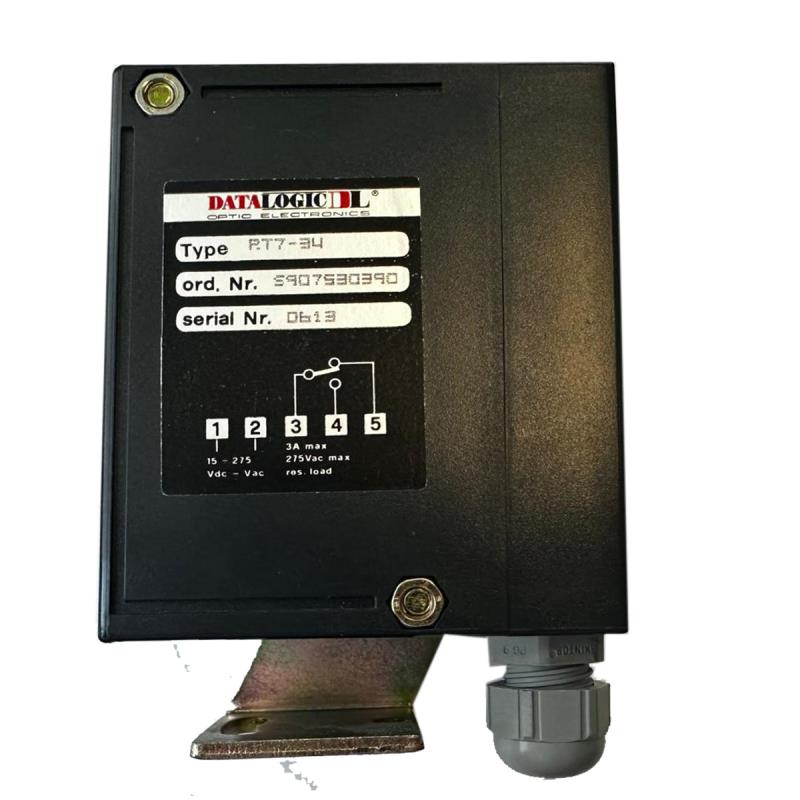

Output: Relay output

Detection range: up to approx. 2 m with white reference material

Protection rating: IP66

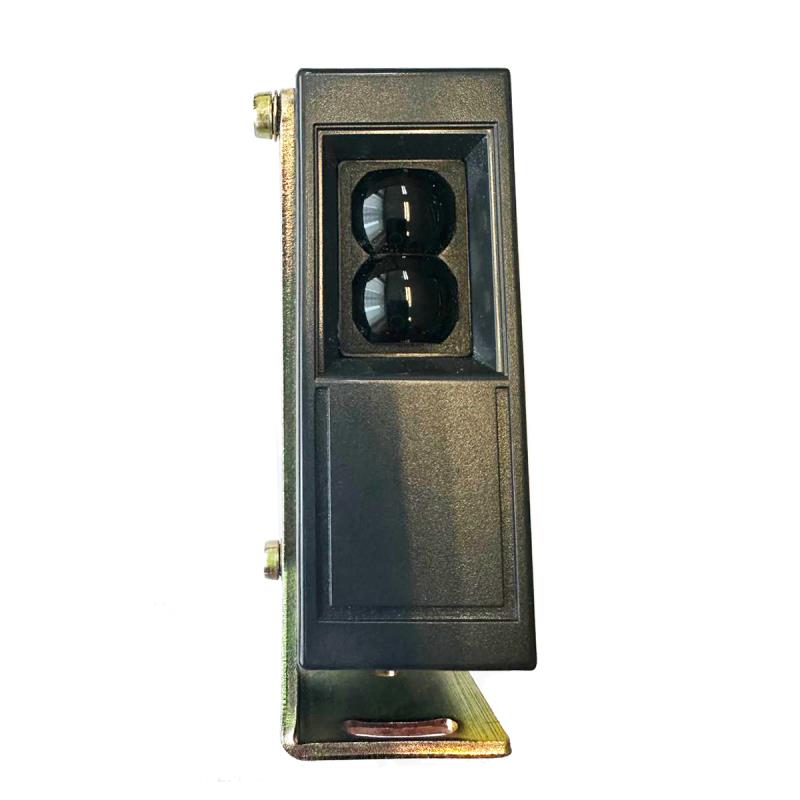

Light source: IR LED, 900 nm

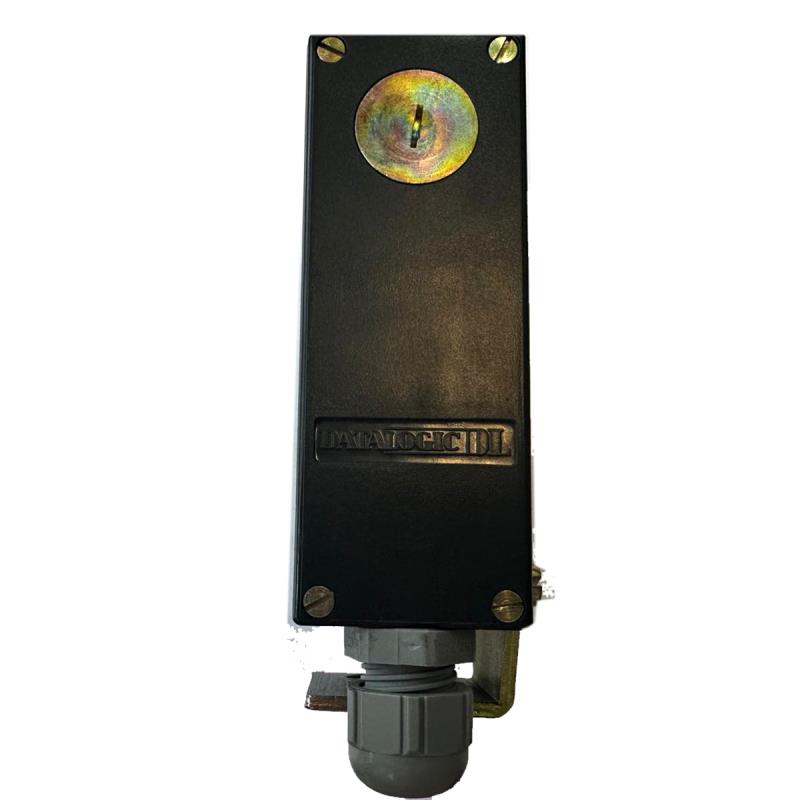

Connection: Terminal block with PG9 cable entry

Operating temperature: approx. minus 15 °C to plus 55 °C

Housing material: Cycolac ABS UL94 V0

Applications

The Datalogic RT7 34 is suitable for industrial automation, conveyor technology, machine construction, vending machine applications, warehouse technology and many other applications where reliable optical detection is required.

Scope of Delivery

1 piece Datalogic RT7 34 photoelectric sensor

Note

Please check before installation whether the technical data matches your existing system. The RT7 34T version is not identical, as it also includes a time delay function.
