Illuminated Push Buttons 53,5x50,5 mm square

Product No.:: 2390000106
Shipping time:: on stock - approx. 1-3 days (abroad may vary)
Stock:: 34 pc(s).
Weight:: 0,0468 kg per pc(s).

Sliding scale prices

1-2 pc(s).: per 14,95 EUR
3-4 pc(s).: per 14,75 EUR
5-9 pc(s).: per 14,50 EUR
10-24 pc(s).: per 14,30 EUR
> 24 pc(s).: per 14,05 EUR

14,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

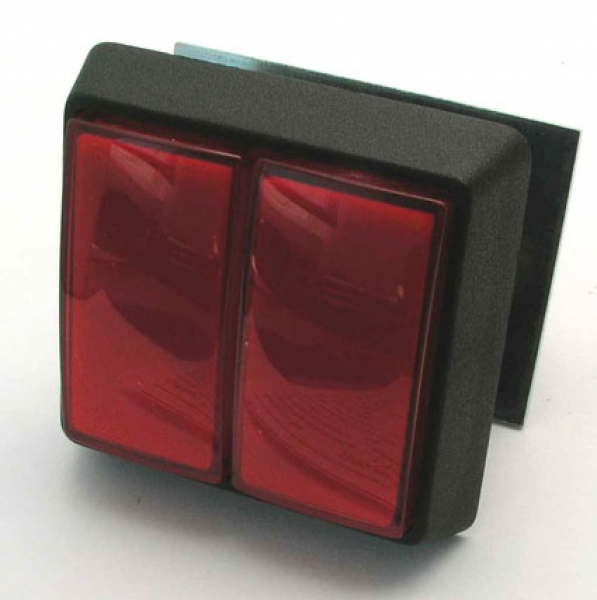

Illuminated Push Buttons 53,5x50,5 mm square

You save space on your panel with the double switch function. Gaming machines where Push Button, classic and robust are needed.

Made from ABS/Nylon. Individual inscription, by inserting a foil between lens cap and legend disk.
No tools necessarily for service and assembly works. Resistant to environmental influences and rough treatment.
Applications:
Gaming and Amusement Vending Machines
Feature:
Robust assembly.
Large number of colours available.
Illumination with Led or T10 Lamp.
Microswitch variety
This model is available in two kinds of fixation, standard Plug-in and Easy Clip System (ECS ).

Optionen:
On request with Easy Clip-System (ECS).
Standardmicrowitch with 6,35x0,4 or 6,35x0,7 or 4,75x0,7 Fast-On

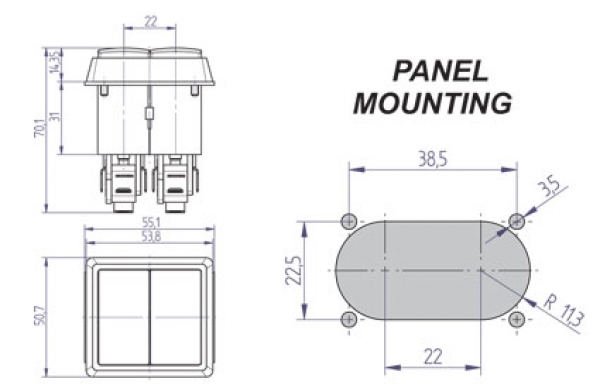

Technical detail:

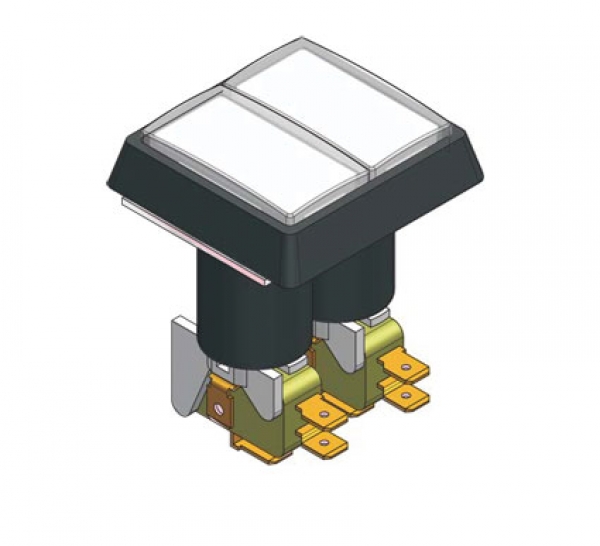

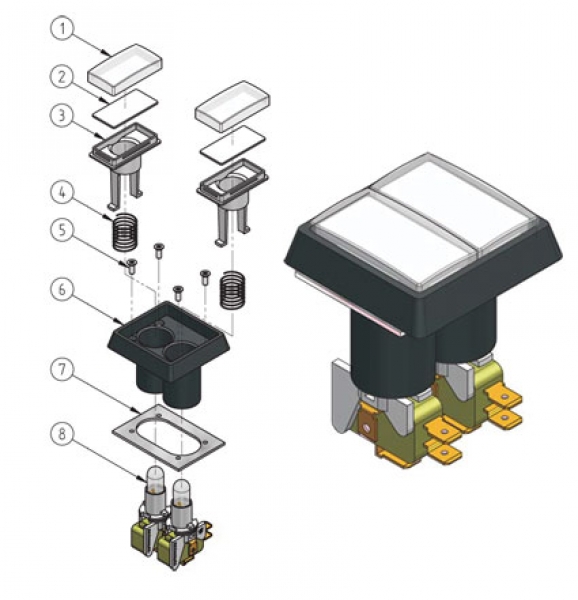

Standard Plug-in System
Lampholder with Standardmicroswitch
Socket for T10 Lamp or LED
Mikroswitch with NC and NO Function

Hint:
Please order Lampholder and Lamps separate..
